Water Cooled Chillers

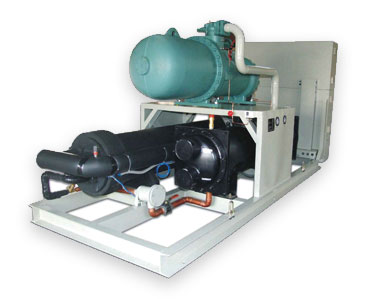

Compact Water Cooled Screw Chillers
Reliable, Eco friendly , Energy effecient
| Compact Water Cooled Screw Chillers | ||||||
|---|---|---|---|---|---|---|
| S.No | Specifications | Units | MCSC 90 W | MCSC 115 W | MCSC 155 W | MCSC 205 W |
| 1. | Nominal Cooling Capacity* | TR | 90 | 115 | 155 | 205 |
| 2. | Actual Cooling Capacity* | KW | 313 | 410 | 537 | 708 |
| 3. | Compressor-Bitzer Make Compact Screw Model |
CSH8551-110-40P | CSH8571-140-40P | CSH8551-180-40D | CSH9571-240-40D | |
| 4. | Expansion Valve Filter Drier etc. |
Danfoss Make | Danfoss Make | Danfoss Make | Danfoss Make | |
| 5. | Refrigerant | R 22 | R 22 | R 22 | R 22 | |
| 6. | Condensor | Shell & Tube, 1/2" External fins, Shell Seamless MS, Tube Sheet BQ Steel | ||||
| 7. | Cooler | Shell & Tube, 5/8" IGT, Shell Seamless MS, Tube Sheet BQ Steel | ||||
*At 4oC Evaporating & 40.5 C Condensing Temperatures ,30 C Inlet Water Temperature, Condensor Water Flow 4 USGPM Per Ton. Chilled Water Inlet Temperature 12.5oC & Chilled Water Outlet Temperature 7oC & Chilled Water Flow 2.4 USGPM Per Ton. Power Consumption is 0.75+/- 10% KW Per Ton.
These Chillers are also available with R 134 a and R 407C.
Maxcool Industrial & Commercial Water Cooled Chillers are designed to cool in tropical climate up to 52oC.
Due to our continuous R&D programmes, all specifications are subject to improvements and changes.
Compact Air Cooled Chillers
Reliable, Eco friendly , Energy effecient
| Compact Air Cooled Screw Chillers | ||||||
|---|---|---|---|---|---|---|
| S.No | Specifications | Units | MCSC 85 A | MCSC 110 A | MCSC 150 A | MCSC 200 A |
| 1. | Nominal Cooling Capacity* | TR | 85 | 110 | 150 | 200 |
| 2. | Actual Cooling Capacity* | KW | 300 | 397 | 515 | 685 |
| 3. | Compressor-Bitzer Make Compact Screw Model |
CSH8551-110-40P | CSH8571-140-40P | CSH8551-180-40D | CSH9571-240-40D | |
| 4. | Expansion Valve Filter Drier etc. |
Danfoss Make | Danfoss Make | Danfoss Make | Danfoss Make | |
| 5. | Refrigerant | R 22 | R 22 | R 22 | R 22 | |
| 6. | Condensor | 3/8” IGT, 13 FPI | 3/8” IGT, 13 FPI | 3/8” IGT, 13 FPI | 3/8” IGT, 13 FPI | |
| 7. | Cooler | Shell & Tube, 5/8" IGT, Shell Seamless MS, Tube Sheet BQ Steel | ||||
*At 4 C evaporating & 43.5 C Condensing Temperatures,35C Ambient. Chilled Water Inlet Temperature 12.5 C & Chilled Water Outlet Temperature 7C.Chilled Water Flow 2.4 USGPM Per Ton. Power Consumption is 0.85 +/- 10% KW per Ton.
These Chillers are also available with R 134 a and R 407C.
Maxcool Industrial & Commercial Air Cooled Chillers are designed to cool in tropical climate up to 52oC.
Due to our continuous R&D programmes, all specifications are subject to improvements and changes.
